We have components & subsystems that could be used to complement your existing inspection systems to enhance their functionalities and improve operability for different testing requirements.
•

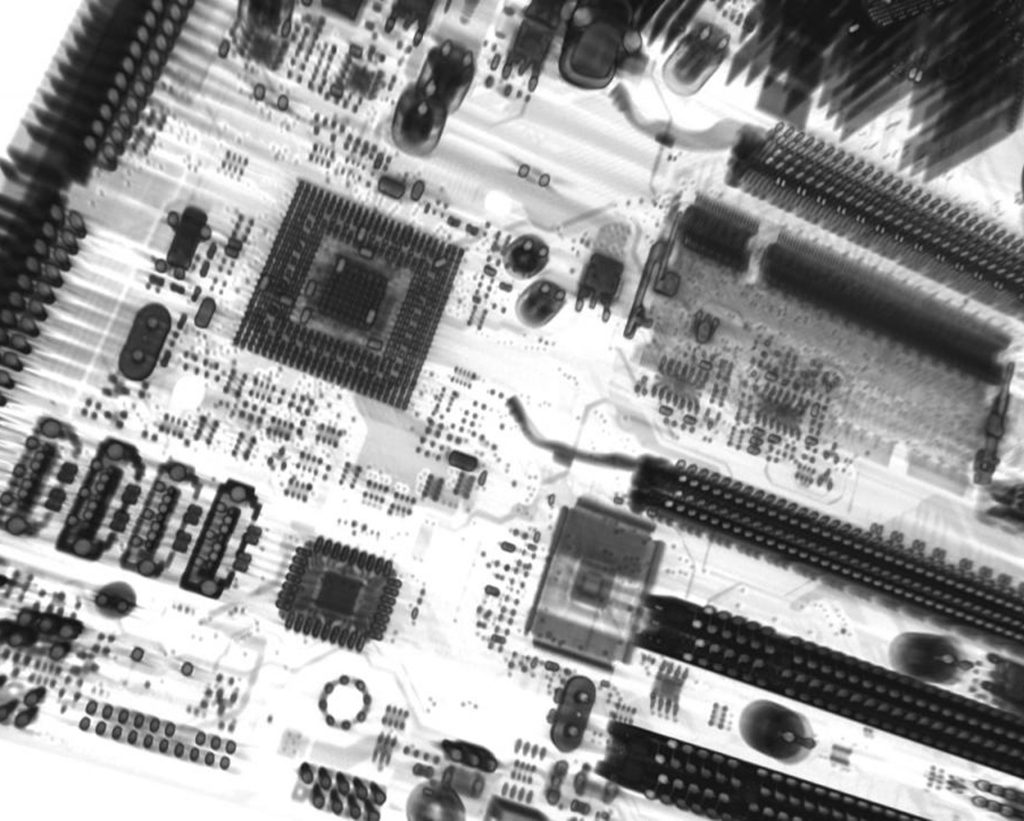

X-Ray Subsystem
100% component check with manual or auto indexing, for handling tape reel's diameter at maximum 180mm and tape width between 8mm to 16mm
- RRI1000L (REEL TO REEL INDEXER (LARGE))
100% component check with manual or auto indexing, for handling tape reel's diameter at maximum 330mm and tape width between 8mm to 45mm
Auto loading and unloading stacked lead frame/substrate inside X-Ray machine to facilitate visual or vision inspection by auto XY indexing,
- XRL1000-sm (Slotted LEAD FRAME AUTO LOADER)
Auto loading and unloading slotted lead frame/substrate inside X-Ray machine to facilitate visual or vision inspection by auto XY indexing,
•

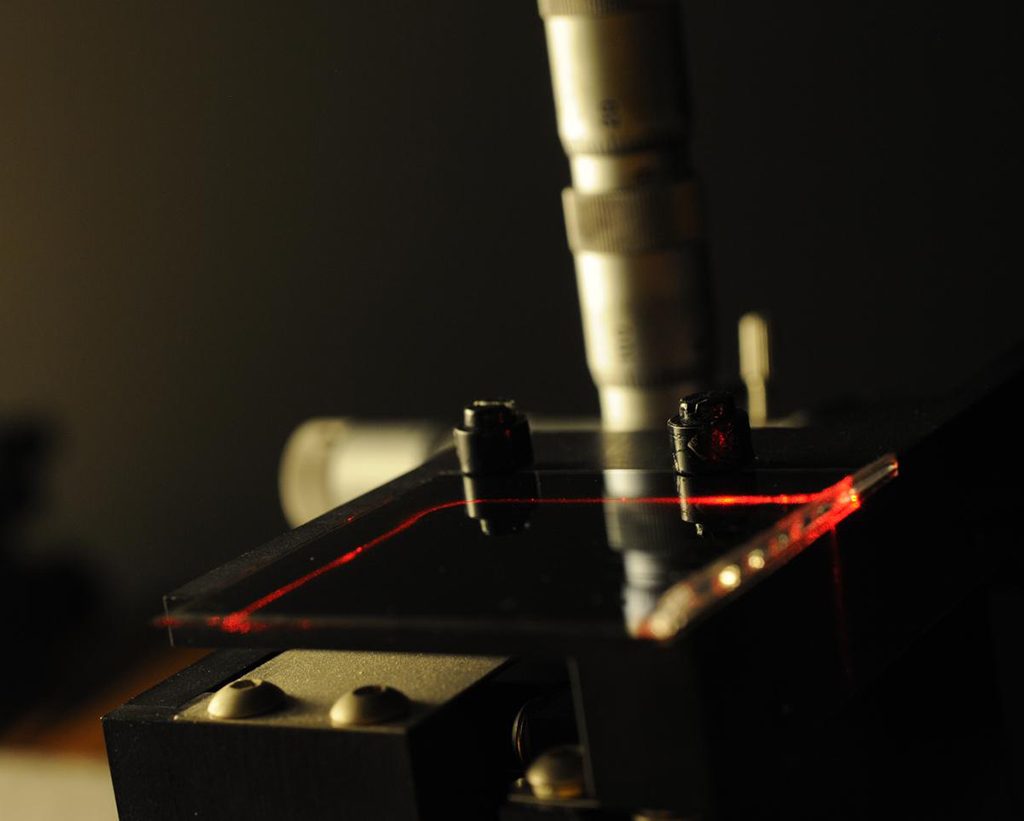

Optical Subsystem & Accessories
- TDR100 (3D ANGLING ROTATOR)
Accessory for optical system (i.e. microscope) allow side and top view rotating in 360°, with built-in LED light, or optional Ring Light for brighter and clearer image
•

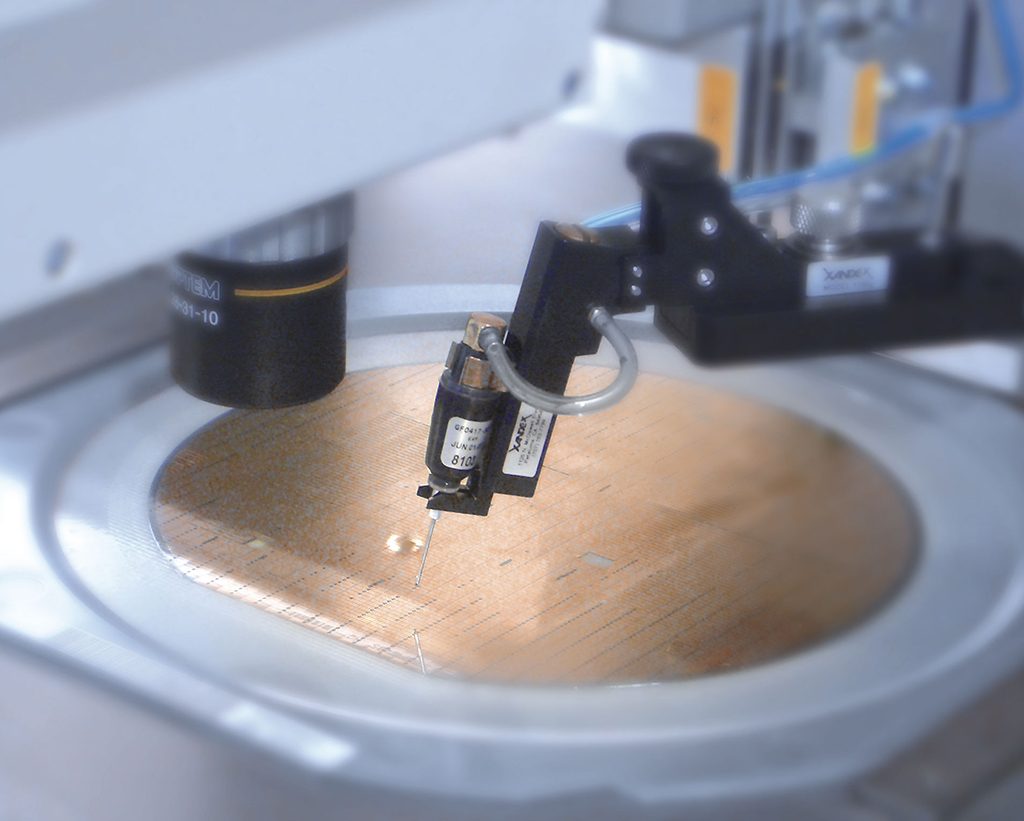

Reject Identification
Marking defect in materials such as wafer, substrate, lead frame with standard electric activated ink cartridges. Ideal use during optical inspection
- INK500 (inker system)
Marking defect in materials such as wafer, substrate, lead frame with convertible electric activated or pneumatic activated ink cartridges. Ideal use during optical inspection
- PNC100 (PUNCHER FOR REJECT IDENTIFICATION)
Ideal use for devices in tape reel under X-Ray inspection. Marking defects by punching soft and tiny hole for permanent reject identifications
Ideal use for devices in tape reel under X-Ray inspection. Non-destructive way to mark defects by attaching small sticker to identify rejects
- LSR100 (LASER REJECT IDENTIFICATION)
Ideal use for devices in tape reel under X-Ray inspection. Marking defects by making a tiny hole with a laser ray for permanent reject identifications
